Findings and procedure details

Radiologists role in every step of the BC patients will be disscused.

Diagnosis

Radiologists are the ones identifying and characterizing breast lesions. Mx is the cornerstone of BC screening, particularly in women over 40 years of age, being effective for detecting calcifications and asymmetries. US is the first imaging tool for the patients under 30 years old and the first that comes after a positive Mx. Breast US in women older than 40 can be negative for abnormalities.

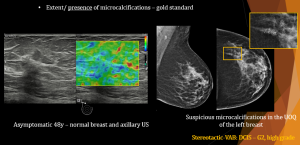

Fig 1: Normal US with microcalcifications visible on MX, and final diagnosis of DCIS
On US, BC can have the typical mass aspect or can be non-mass appearing lessions like microcalcifications (the ones US visible) and architectural distortions.

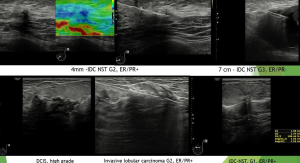

Fig 2: Mass and non-mass lesions on US
Elastography provides additional information by assessing tissue stiffness. For high-risk patients (BRCA mutation, prior chest radiotherapy, family history) or those with inconclusive findings on Mx or US (mammographic-echographic discordant result), MRI offers unparalleled sensitivity, being highly effective in identifying multifocal and multicentric disease and evaluating tumors that may not be visible using other modalities.

After asseing the lesions, radiologists rely on the Breast Imaging Reporting and Data System (BI-RADS) for standardized reporting and communication, ensuring clarity in diagnostic interpretations. The next step of diagnosis is the biopsy. US-guided biopsies are widely used, being effective for superficial or easily accessible abnormalities. Stereotactic vacuum-assisted biopsies (VAB) are invaluable for targeting non-palpable lesions, especially microcalcifications identified on mammograms.

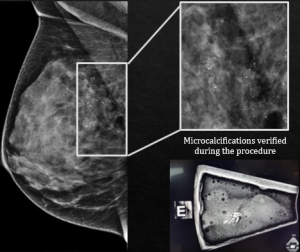

Fig 3: Stereotactic-guided biopsy
This method uses Mx to calculate the location of the lesion, allowing for tissue sampling. It is effective in diagnosing ductal carcinoma in situ (DCIS) and other suspicious findings that might otherwise go undetected. MRI-guided biopsies, not widely available, are valuable for lesions that are only visible on MRI.

Informing the Patient

Delivering bad news is an emotional and ethical challenge faced by radiologists. They are often the first to inform patients about suspicious findings or biopsy results. Effective communication requires empathy, clarity and adherence to structured protocols like SPIKES, which provide a framework for discussing distressing news. Radiologists can help patients cope with their diagnoses and engage actively in their treatment journey.

Staging Breast Cancer

Radiologists are crucial in BC staging by integrating imaging findings with the American Joint Committee on Cancer (AJCC) TNM classification system, which considers tumor size (T), nodal involvement (N), and metastasis (M). The TNM classification of the BC is illustrated in Table 1.

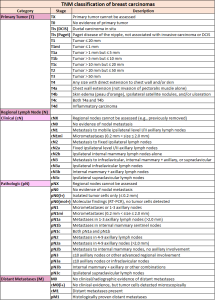

Table 1: TNM classification of breast carcinomas

Tumor size is assessed by integrating the Mx, US and MRI information, MRI measurements of the tumor being the most accurate.

Lymph node staging impacts prognosis and treatment planning, with US being the key examination of this step. When imaging findings suggest suspicious nodes (cortical thickening > 3 mm, lost fatty hilum, rounded morphology, extracapsular extension), a US-guided biopsy is performed to differentiate between benign and metastatic nodes.

Fig 4: Lymph nodes evaluation

For distant metastasis, a CT of the thorax, abdomen and pelvis is preferred and additionally a PET-CT and a bone scan. In cases of neurologic symptoms, a brain MRI can be considered.

Monitoring Therapy Response

Monitoring response to neoadjuvant therapy (NAT) is another critical step for radiologists. Mx plays an important role, particularly in identifying changes in calcifications, size, density.

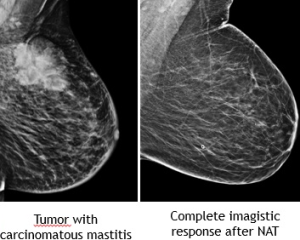

Fig 5: Monitoring the therapy
US further complements this modality by tracking changes in tumor size and assessing nodal response, making it an essential tool in monitoring therapy outcomes.

Guiding Surgical Procedures

Radiologists support surgical planning by providing information that guide preoperative localization and intraoperative decisions. In cases of multicentric disease, radiologists identify multiple tumor foci, which influence the decision to proceed with mastectomy rather than breast-conserving surgery (BCS). Imaging findings that reveal chest wall invasion or nipple involvement impact surgical planning, as these require more extensive resections.

Techniques such as wire localization and skin marking are essential for identifying non-palpable lesions: wire localization, performed under US or stereotactic guidance, is useful for deep or complex lesions and skin marking offers an alternative for superficial lesions, but may lack the precision needed for deeper abnormalities.

Fig 6: Stereotactic-guided marking

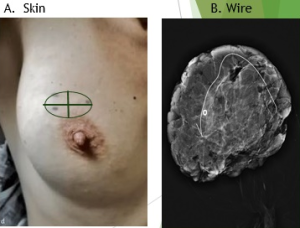

Fig 7: Pre-surgery marking

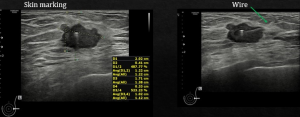

Fig 8: US guided skin and wire marking
For patients undergoing NAT, the insertion of metallic clips into the tumor before treatment is crucial. These clips ensure the tumor bed is easily identifiable during surgery, even if the tumor reduces significantly or becomes non-palpable. This approach allows surgeons to target residual disease and plan resections based on the original tumor's location.

Intraoperative imaging, including specimen radiography, allows surgeons to confirm complete excision of the lesion and assess margin status. Radiologists provide real-time evaluation for immediate feedback to the surgical team, which is critical in reducing reoperation rates and enhancing surgical outcomes.

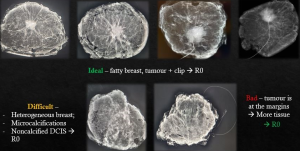

Fig 9: During the surgery
Intraoperative US, may also guide excision in real-time, particularly for non-palpable lesions.

Follow-Up

Immediate post-surgical imaging involves US for complications such as seromas and hematomas.

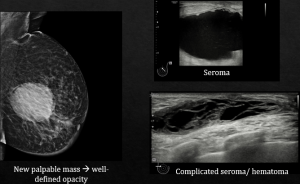

Fig 10: Immediate follow-up after surgery- complications
Radiologists are central in the long-term follow-up of BC patients, monitoring for recurrence and managing complications. Surveillance imaging includes Mx (the gold-standard tool for follow-up), US and MRI. Mx is crucial for detecting early recurrence patterns in patients who have undergone BCS, and for evaluating the contralateral breast. It is effective in identifying new calcifications or mass-like abnormalities. US evaluates abnormalities in both natural and reconstructed breasts, offering detailed insights into cystic or solid characteristics.

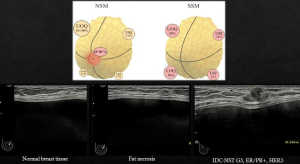

Fig 11: Mastectomy and implant reconstruction
MRI is often the preferred modality for assessing reconstructed breasts to detect implant rupture or capsular contracture.

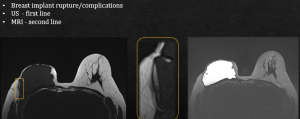

Fig 12: Breast implants follow-up
MRI is able to differentiate between a scar and a recurrence. Imaging modalities complement each other for comprehensive patient surveillance.

Radiologists face limitations across all these steps.

Diagnosis

Mx has reduced sensitivity in dense breast tissue, which may result in missed lesions. While US and MRI can help, they also have limitations. US is operator-dependent and can not visualise changes such as microcalcifications and lobular carcinoma in situ. US-guided biopsies are operator-dependent, leading to variability in outcomes, when identifying small or deep lesions. Despite being highly sensitive, MRI does not replace the Mx examination or the biopsy; it may produce false positive results, necessitating additional biopsies that can increase anxiety. Radiologists face significant challenges in interpreting atypical findings that overlap with benign conditions and mimic malignancy, like fat necrosis or fibrosis.

Informing the Patient

Radiologists often lack formal training in breaking bad news, making this aspect of their role particularly emotionally challenging. Providing patients with clear and compassionate explanations of imaging findings is critical to fostering trust and helping patients cope with their diagnosis.

Staging

Staging is limited by the sensitivity of current imaging modalities, making the detection of micrometastasis challenging. PET/CT, while highly sensitive for identifying active disease, may yield false positives due to inflammatory or benign conditions, emphasizing the importance of correlating imaging results with histopathological data. Some metastasis are not visible on CT examination and some concerning lesions visible on CT are non-FDG positive. Lymph nodes US also lacks 100% sensitivity in assessing metastasis. Post-treatment changes, including fibrosis or inflammation, can mimic disease progression. Another challenging situation comes when differentiating metastatis from synchronous primary tumors.

Monitoring Therapy

Radiologists face challenges in differentiating viable tumor tissue from post-treatment changes like fibrosis or necrosis. Emerging therapies such as immunotherapy introduce additional complexities, including pseudoprogression, where inflammation or immune cell infiltration may mimic tumor growth, which will require radiologists to integrate imaging findings with clinical and pathological data for accurate assessments.

Guiding Surgery

Wire localization can result in displacement or migration, potentially affecting surgical outcomes. Metallic clips placement is not always feasible when the tumor is in an area difficult to access/evaluate. Accessibility to small or deep lesions remains technically challenging, particularly when using stereotactic guidance. These factors necessitate close coordination between radiologists and surgeons to optimize outcomes.

Follow-Up

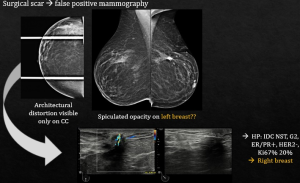

Follow-up imaging is challenging as the scar tissue and recurrent disease can appear similar on imaging.

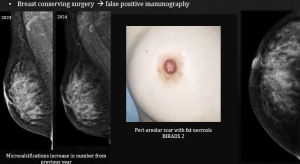

Fig 13: Differentiating scar tissue from recurrent disease- fat necrosis in this case
Fig 14: Differentiating scar tissue from recurrent disease- recurrent disease in this case
Artifacts in reconstructed breasts, such as those caused by implant materials or previous surgical interventions, can obscure findings, increasing the risk of false positives or negatives.
