Advanced MRI techniques have revolutionized our understanding of language processing and its disruption in aphasia:

• Lesions in Broca’s area lead to expressive language deficits, while Wernicke’s area lesions impair comprehension.

• Damage to connecting white matter tracts like the arcuate fasciculus correlates with conduction aphasia, where repetition is specifically impaired.

• Functional imaging reveals that recovery often involves recruitment of perilesional areas or homologous regions in the contralateral hemisphere.

• MRI-based localization enables classification into subtypes such as Broca’s, Wernicke’s, and global aphasia, each with distinct therapeutic implications.

Imaging Techniques and Findings

Structural MRI

Structural MRI, particularly T1-weighted imaging, provides high-resolution anatomical details. Lesions in key language areas such as:

• Broca’s Area (Inferior Frontal Gyrus): Lesions in this region are associated with Broca’s aphasia, characterized by non-fluent speech and intact comprehension.
• Wernicke’s Area (Superior Temporal Gyrus): Damage here leads to Wernicke’s aphasia, marked by fluent but nonsensical speech and poor comprehension.
• Arcuate Fasciculus: This white matter tract connects Broca’s and Wernicke’s areas. Disruption results in conduction aphasia, where repetition is notably impaired.

Diffusion Tensor Imaging (DTI)

DTI is a powerful tool for visualizing white matter tracts. In aphasia research, DTI has shown:

• Reduced fractional anisotropy in the arcuate fasciculus correlates with impaired repetition.
• Damage to the superior longitudinal fasciculus contributes to deficits in expressive and receptive language.

Functional MRI (fMRI)

Functional MRI maps brain activity by detecting changes in blood flow. It has been instrumental in:

• Identifying compensatory activity in the contralateral hemisphere in chronic aphasia.
• Mapping language areas pre-surgically to preserve functionality.
• Assessing plasticity and recovery post-stroke.

Perfusion-Weighted Imaging (PWI)

• PWI evaluates cerebral blood flow, which is crucial in acute stroke settings. Hypoperfusion in language areas, even without visible structural lesions, can predict aphasia and guide interventions like thrombolysis or thrombectomy.

fMRI Activation Maps:

• Language task activation patterns in healthy and aphasic patients demonstrating compensatory activation in the right hemisphere.

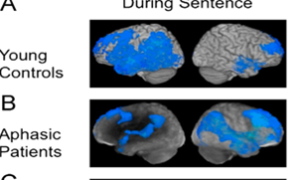

  Fig 7: In aphasic patients, as expected, much less activity was observed in the lesioned left hemisphere

Case Studies with Imaging Correlations

1. Acute Stroke with Broca’s Aphasia:

• Imaging: DWI showing acute infarct in the left IFG; T2/FLAIR hyperintensity in subacute stages.
• Clinical Correlation: Severe expressive language deficits with intact comprehension.

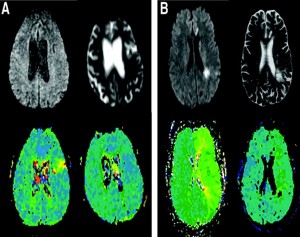

  Fig 2: o A, DWI or T2 (top) and PWI (bottom) at day 1 (left) and follow-up (right) in a patient who had Broca aphasia at day 1 when he had hypoperfusion of Broca area, which resolved with reperfusion of Broca area (before day 2; he remained nonaphasic at 6-month follow-up). B, DWI or T2 (top) and PWI (bottom) at day 1 (left) and follow-up (right) in a patient who had global aphasia at day 1 when she had hypoperfusion of the entire left middle cerebral artery and anterior cerebral artery territories, which resolved with reperfusion (at day 10; she remained nonaphasic at 6-month follow-up).

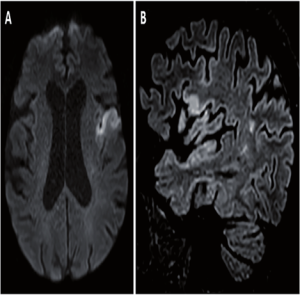

  Fig 3: DWI of Acute Stroke: Broca and left Rolandic operculum acute ischemic stroke in a 65-year-old woman presenting with Broca's aphasia, hyperintense on DWI (A) and FLAIR (B).

              2  Global Aphasia in MCA Stroke:

• Imaging: Structural MRI reveals extensive left hemisphere infarct involving both anterior and posterior perisylvian regions. Perfusion studies demonstrate a large hypoperfused penumbra.
• These Extended lesions (including left peri-sylvian anterior and posterior language areas), which are the result of a left middle cerebral artery or carotid artery occlusion (with a total left middle cerebral artery infarct),
• Clinical Correlation: Complete loss of both expressive and receptive language abilities.ie: global aphasia with hemiplegia, hemisensory deficits, and hemianopia.

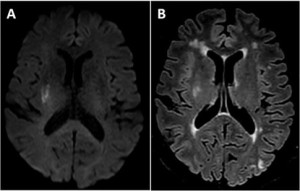

  Fig 4: Acute ischemic stroke of the right external capsule in a 76-year-old man presenting with global aphasia, hyperintense on DWI (A) and FLAIR (B).

3-Primary Progressive Aphasia (PPA):

• Imaging:  asymmetric atrophy in the left anterior temporal lobe. Functional imaging highlights reduced connectivity in language networks.
• Clinical Correlation: Gradual decline in naming and word retrieval with intact motor skills.

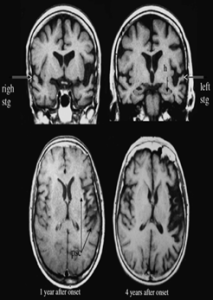

  Fig 5: Top] Two coronal sections, showing the asymmetric atrophy of the left perisylvian cortex in a PPA patient. [Bottom] Two axial sections showing the progression of atrophy.

4- Conduction Aphasia.

• Imaging :The lesions affect the inferior parietal lobes, especially the supramarginal gyrus and/or the external capsule; they classically disrupt the arcuate fasciculus, although its role remains debated for the repetition impairments: probably disconnection between the superior temporal cortex and the inferior frontal gyri, respectively
• Clinical correlation: short-term memory syndrome (the repetition impairment due to limited working memory

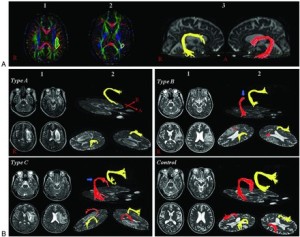

  Fig 6: 1)seed region of interest, 2) target region of interest, and 3) reconstructed AF. B, 1) T2-weighted brain MR imaging in subacute stroke shows brain lesions in the left corona radiata and at the basal ganglia level, and 2) DTT for the AF (right AF, yellow; left AF, red). The blue arrow indicates disruption of the left AF around the stroke lesion.

Clinical Implications

1. Diagnosis: MRI aids in the precise localization of lesions, enabling accurate classification of aphasia type.
2. Prognosis: Imaging findings, such as lesion size and location, correlate with the severity of aphasia and potential for recovery.
3. Treatment Planning:
   • fMRI helps identify viable neural substrates for targeted rehabilitation.
   • DTI guides interventions by visualizing the integrity of white matter tracts.
4. Surgical Guidance: Preoperative functional imaging ensures preservation of critical language areas during neurosurgical procedures.
5. Research and Innovation: MRI continues to expand our understanding of neuroplasticity, paving the way for novel therapies like transcranial magnetic stimulation (TMS) and brain-computer interfaces.

Limitations and Future Directions

• MRI accessibility remains limited in some regions, restricting its widespread application.
• Functional imaging requires patient cooperation, which may be challenging in severe aphasia.
• Further research is needed to standardize imaging protocols and integrate findings into routine clinical practice.
• Emerging technologies such as high-field MRI (7T) and machine learning algorithms hold promise for enhancing diagnostic accuracy and treatment outcomes.
